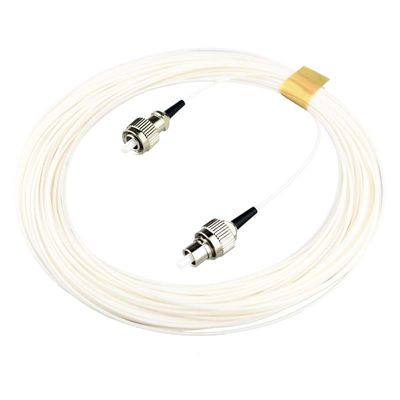

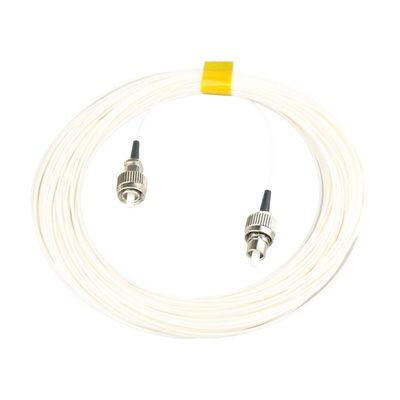

Anti-reflective coating patch cord jumper 405-532 nm Customize any wavelength

원래 장소	중국
브랜드 이름	YOGEL
인증	ISO9000
최소 주문 수량	1
가격	negotiate
포장 세부 사항	상자 상자
지불 조건	L/C, D/A, T/T, Western Union, MoneyGram
공급 능력	한 달에 100 조각

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

제품 상세 정보

삽입 손실	0.3dB 이하	섬유 자켓 소재	PVC/LSZH/OFNP
케이블 길이	1 미터 (선택 사항)	커넥터 유형	FC/APC (Senko, SG 옵션)
섬유 직경	9/125μm	작동 온도	-40 +~ +85 ℃
보증	1년	좁은 키	2.0mm
섬유 종류	단일 모드	파장	405-532 nm 모든 파장을 맞춤화
섬유 수	단순/이중	섬유 재킷 직경	2.0/3.0mm

메시지를 남겨주세요

제품 설명

Anti-reflective coating patch cord jumper 405-532 nm Customize any wavelength

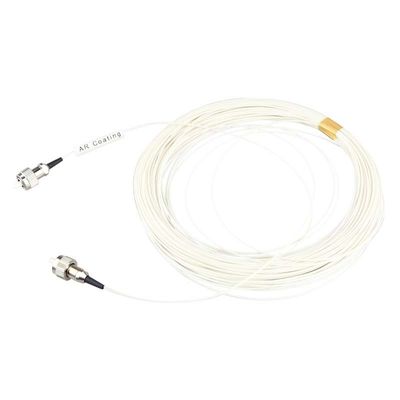

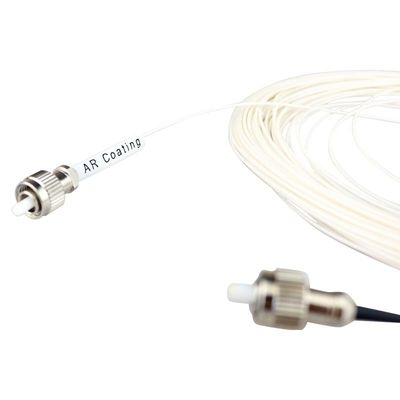

We offer fiber optic patch cords with an FC/PC or FC/APC connector coated with a permeation enhancement film on one end and an uncoated FC/PC or FC/APC

connector on the other end. Transparency enhancement coatings are designed to reduce the reflection ratio of

when launching a beam from a fiber into free space or coupling a free space beam into a fiber. Depending on the patch cord, the average reflectance of the coated connector is less than 1%, less than 0.75%

or less than 0.5% over the transmissive film frequency range (click on the transmissive film coated reflectance graph below for more information). Each patch cable is supplied with Ø3mm Kevlar reinforced

split tubing. Patchcords are grouped below according to the optimal performance range, with bare fiber overlapping the specified operating wavelength range of the permeation enhancement film.

Feature:

Low insertion loss
High repeatability and high stability
MPO/MTP polarity can be arbitrarily matched
Complies with GR326 or IEC61300-2 standards

Application:

Fiber-to-free-space coupling

When light is incident from a fiber into free space, such as when using our fiber collimators and FiberPort collimator/couplers, the return loss

(loss of signal reflecting back to the light source at the glass-air interface at the end of the fiber) will be more severe than the equivalent fiber-to-fiber coupling

method. The return loss on FC/PC connectors can be reduced by ~8 to 10 dB by coating the fiber ends with a permeation enhancing film

and by ~2 to 5 dB on FC/APC connectors. For example, in testing, a typical return loss for a

patch cord with an uncoated connector was ~15 dB (3.16%), while the same patch cord with a permeation-enhanced connector had a return loss of ~24 dB

(0.40%). Transmission enhancement connectors also improve the transmittance of free-space beams when coupled into optical fibers. For more test data,

see the Experimental Observations tab.

Specification:

Item	AR Coating connector	No coating connector	AR Coating
P1–305AR–2	FC/PC	FC/PC (30126C3)	<0.5%
			for 500 – 800 nm
P5–305AR–2	FC/PC	FC/APC(30126 A3)
P4–305AR–2	FC/APC(30126 A3)	FC/PC (30126C3)
P3–305AR–2	FC/APC(30126 A3)	FC/APC(30126 A3)
