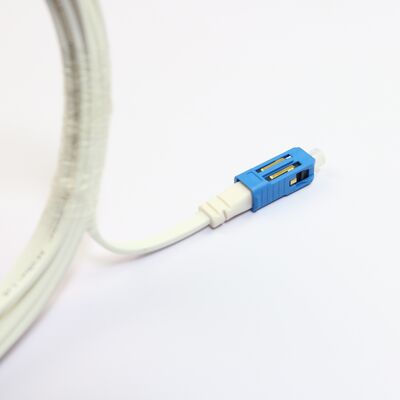

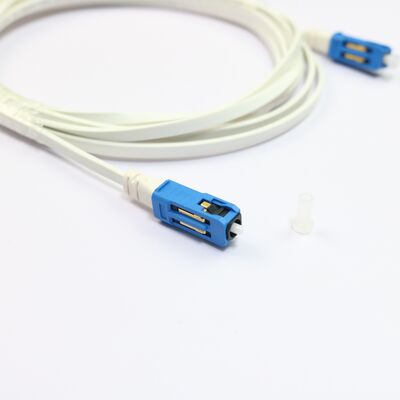

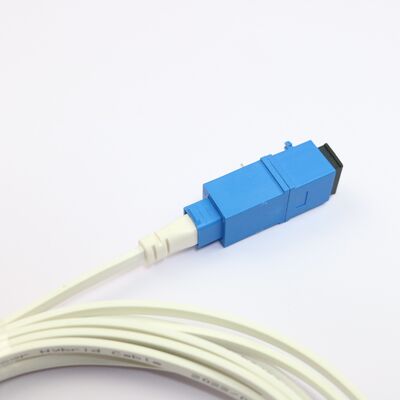

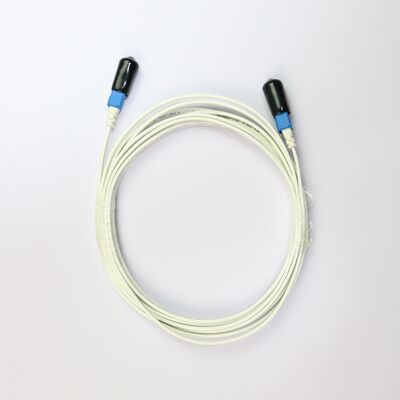

Indoor double-ended prefabricated hybrid fiber optic cable assembly with SC XC connector
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 어플리케이션 | PoF 케이블 전도도 테스트 | 삽입 손실 | 0.3dB 이하 |
|---|---|---|---|
| 제품 카테고리 | 특수 광학 제품 | 불꽃 지연 등급 | UL94V-0 |
| 보관 온도 | -40 +~ +70 ℃ | 작동 습도 | ≤95% (+40℃) |
| 어댑터 유형 | XC/UPC-SC/UPC | 인장강도(단기/장기) | 케이블 #1 100N/50N, 케이블 #2 120N/60N |
| 자립한 | 200N / 120N | 평탄화(단기/장기) | 2200N/100mm/1100N/100mm |
| 최소 굽힘 반경(정적/동적) | 18mm/36mm |
제품 설명
Product Description:
Indoor on-site optical hybrid cable is a hybrid cable with integrated fiber optic and power transmission copper wires, which is suitable for indoor conduit cabling, on-site fiber optic connection and power supply scenarios for terminal equipment.
It is suitable for indoor conduit wiring, terminal equipment on-site fiber optic connection and power supply scenarios, providing data transmission and equipment remote power supply functions.
Features:
●Optical and electrical integration, at the same time to provide data transmission and equipment remote power supply function
●Similar wires can be wired, spliced and terminated on site
●Factory prefabricated or field terminated SC/UPC optoelectronic connector
●Superior bending performance and good flexibility, easy to construct.
Technical Parameters:
| Installation Environment | Indoor |
| Port | Double-ended pre-assembled SC/UPC optical connectors |
| Operating Temperature | -10 ℃~+60 ℃ |
| Operating Humidity | 0%～95%(+40 ℃) |
| Storage Temperature | -15℃~+60 ℃ |
| Rated Operating Voltage (DC) | 48~56V |
| Rated Working Current (DC) | Cable #1 0.25 A, Cable #2 0.5 A |
| Maximum Load Distance |
56 V power supply, terminal power 15 W Carrying distance: 1 # cable ≥ 150 meters, 2 # cable ≥ 300 meters |
| Flame retardant grade | UL94-VO |
Indoor Field Optical Hybrid Cable Dimensional Description
| Fiber | Fiber | G.657A2 ,1core |
| optoelectronics | material |
Stranded Copper Cable #1 7 x 0.16 mm x 2 Cable #2 14 x 0.16 mm x 2 |
| Lead spacing | 1.50±0.05 mm (Key size) | |
| Hybrid fiber optic cable outer jacket | material | White: Low Smoke Halogen Free |
| non-self-supporting | 3.0 mm x 2.0 mm | |
| Self-supporting | 5.0 mm x 2.0 mm | |
| Optical Hybrid Cable Connector Length | 5/10/15/20/25/30/35/40/45/50/55/60/65/70/75/80 m/Support customization | |
Connector Optical and Mechanical Properties
| Connector Type | Double-ended SC/UPC Optical Hybrid Cable Connector |
| Size(H×W×D) | 8.8 mm x 8.2 mm x 40.5 mm |
| insertion loss | ≤0.50 dB |
| return loss | ≥50 dB |
| tensile | 1 # cable: ≥ 40 N, 2 # cable: ≥ 50 N |
| Number of insertions and removals | 50 times |
Cable electrical performance index
| Insulation resistance | ≥500 mΩ, DC 300V at room temperature, 1 min. |
| Dielectric withstand voltage | 1000V,1 min,leakage current less than 0.5mA |
| Conductivity test | No short circuit or open circuit, room temperature |
| Contact resistance | Rtest≤ (Rcable)+2×50 mQ |
Applications:
YOGEL's Hybrid Components, with the model number SC-XC, are versatile products that can be used in a variety of applications and scenarios. These components are ideal for situations where different types of optical connectors need to be integrated seamlessly, making them perfect for hybrid assemblies.
One common application occasion for YOGEL's Hybrid Components is in telecommunications systems where multiple types of fiber optic connectors are used. These components allow for the interspersion of various connector types, ensuring smooth data transmission and optimal performance.
Another scenario where the Hybrid Components excel is in data centers where different networking equipment may require the mingling of parts with XC/UPC-SC/UPC adapters. YOGEL's components provide a reliable and efficient solution for connecting different devices with ease.
YOGEL's Hybrid Components are ISO9000 certified, guaranteeing high quality and performance. They are manufactured in CHINA and have a minimum order quantity of 1, with prices open for negotiation. Payment terms include L/C, T/T, and Western Union, making it convenient for customers to make transactions.
With a supply ability of 100 pieces per month and packaging details in a carton box, YOGEL's Hybrid Components are a reliable choice for those in need of specialty optical products. The insertion loss of these components is ≤0.3dB, ensuring minimal signal loss during data transmission.
These Hybrid Components come in a range of colors including green, blue, and aqua, with the option for other custom colors as well. They can withstand storage temperatures ranging from -40℃ to +70℃, making them suitable for a variety of environments and conditions.
Support and Services:
Our Product Technical Support and Services for the Hybrid Components product are designed to assist you with any issues or questions you may have regarding the installation, operation, or maintenance of our products.
Our team of experts is available to provide guidance and troubleshooting to ensure that your Hybrid Components are functioning at their best performance.
In addition to technical support, we also offer a range of services such as product upgrades, training programs, and maintenance packages to help optimize the performance and longevity of your Hybrid Components.
Packing and Shipping:
Product Name: Hybrid Components
Package Contents:
- Hybrid Components x 1
- Instruction Manual x 1
Shipping Information:
- Shipping Method: Standard Shipping
- Estimated Delivery Time: 5-7 business days
FAQ:
Q: What is the brand name of the Hybrid Components product?
A: The brand name is YOGEL.
Q: What is the model number of the Hybrid Components product?
A: The model number is SC-XC.
Q: Where is the Hybrid Components product manufactured?
A: The product is manufactured in CHINA.
Q: What certifications does the Hybrid Components product have?
A: The product is certified with ISO9000.
Q: What are the available payment terms for purchasing the Hybrid Components product?
A: The available payment terms are L/C, T/T, and Western Union.
