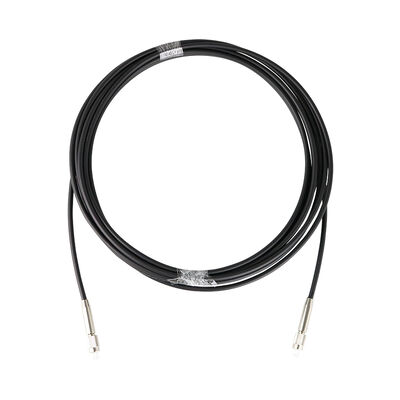

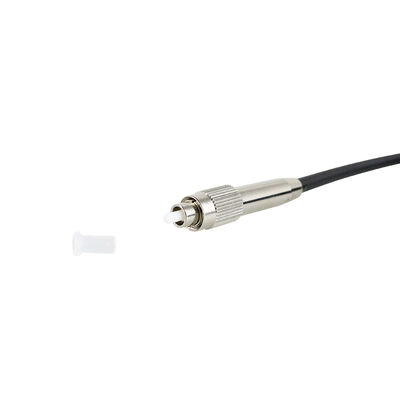

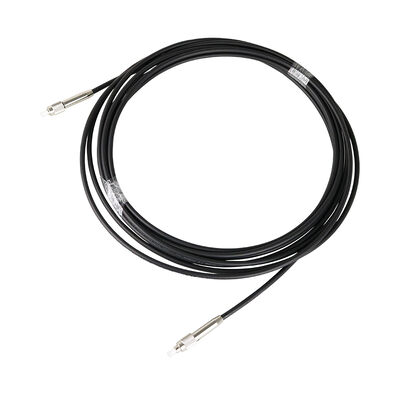

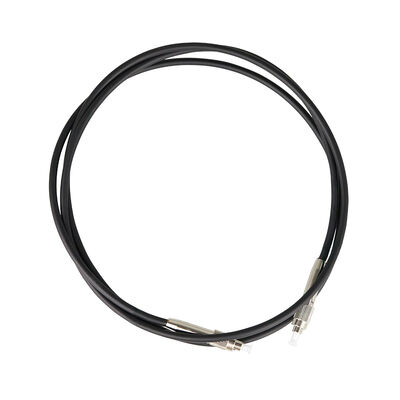

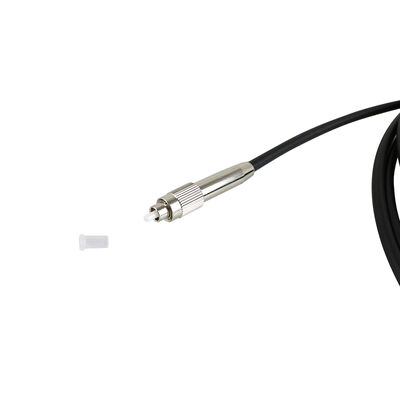

Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector

원래 장소	중국
브랜드 이름	YOGEL
인증	ISO9000
모델 번호	4.8mm
최소 주문 수량	1
가격	negotiate
포장 세부 사항	판지 상자
지불 조건	L/C, D/A, T/T, Western Union, MoneyGram
공급 능력	한 달에 100 조각

무료샘플과 쿠폰을 위해 나와 연락하세요.

왓츠앱:0086 18588475571

위챗: 0086 18588475571

스카이프: sales10@aixton.com

만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.

제품 상세 정보

파장 (NM)	400nm ~ 2500nm (Low OH)	조리개(NA)	0.22± 0.02
최소 감쇠(RSS 파장)	20 dB	코어/클래딩	순수 실리카 / 불소 첨가 실리카
양쪽 끝	FC UPC	길이로 사용 가능	20m

메시지를 남겨주세요

제품 설명

Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector

Multimode fiber optic patch cord: are designed for shorter distance transmission. They have a larger core diameter (typically 50 or 62.5 microns) compared to single mode patch cord. Multimode fiber jumper are often utilized in LAN (Local Area Network) environments, campus networks, and short-distance communications within buildings.

Feature:

Numerical Apertures from 0.10 to 0.50 - Compatible with majority of fiber-coupled, diode-laser packages
Cables Available for Wavelengths from 190 nm to 2500 nm
Available in Lengths up to 20m*
SMA905 Connectors on Both Ends
Ø0.9 mm, Ø2.0 mm, Ø3.0 mm,Ø4.8 mm,, Ø5.0 mm, or 6.0mm Outer Jacket available (12-color options)
Custom Cables Available

*We have some Ø3.0mm & Ø2.0mm specialty cables in store, so no need to insert bare fiber into the tubing, thus any length will be available. Please contact us for details.

Application:

Spectroscopy
Illumination
Power/Beam Delivery
LED Energy Transmission
Medical Instruments
Optogenetics
Fiber coupled diode lasers
Couplers and pump combiners

Coherent Multi-Mode Fibers: (Only list part of this series)

Model No.	Core Diameter	NA	Cladding Diameter	Coating Diameter	Wavelength Range	OH Level
MM-S105/125-12A	105.0 ± 3.0 μm	0.120 ± 0.020	125.0 ± 2.0 μm	245.0 ± 15.0 μm	800 – 1600 nm	Low
MM-S105/125-15A	105.0 ± 3.0 μm	0.150 ± 0.020	125.0 ± 2.0 μm	245.0 ± 15.0 μm	800 – 1600 nm	Low
MM-S105/125-22A	105.0 ± 3.0 μm	0.220 ± 0.020	125.0 ± 2.0 μm	245.0 ± 15.0 μm	800 – 1600 nm	Low
MM-S200/220-12A	200.0 ± 4.0 μm	0.120 ± 0.020	220.0 ± 3.0 μm	320.0 ± 15.0 μm	800 – 1600 nm	Low
MM-S200/220-22A	200.0 ± 4.0 μm	0.220 ± 0.020	220.0 ± 3.0 μm	320.0 ± 15.0 μm	800 – 1600 nm	Low
MM-S200/240-22A	200.0 ± 4.0 μm	0.220 ± 0.020	220.0 ± 3.0 μm	320.0 ± 15.0 μm	800 – 1600 nm	Low
MM-S400/440-22A	400.0 ± 9.0 μm	0.220 ± 0.020	440.0 ± 8.0 μm	625.0 ± 25.0 μm	800 – 1600 nm	Low
MM-S600/660-22FA 1362303	600.0 ± 12.0 μm	0.220 ± 0.020	660.0 ± 12.0 μm	875.0 ± 30.0 μm	700 – 2200 nm	Low

Coherent NuBEAM series Beam Delivery Fibers: (Only list part of this series)

Model No.	Core Diameter	NA	Second Cladding Diameter	Second Buffer Diameter	Wavelength Range	OH Level
BD-S50/70/360-STN	51.0 ± 1.0 μm	0.220 ± 0.020	367.5 ± 7.5 μm	650 ± 32 μm	800 – 2100 nm	Low
BD-S100/130/480-STN	102.00 ± 2.00 μm	0.220 ± 0.020	490 ± 10 μm	750 ± 37 μm	800 – 2100 nm	Low
BD-S150/180/660-STN	153.00 ± 3.00 μm	0.220 ± 0.020	673 ± 13 μm	1100 ± 55 μm	700 – 2200 nm	Low
BD-S200/220/360-STN	204.0 ± 4.0 μm	0.220 ± 0.020	367.5 ± 7.5 μm	650 ± 32 μm	800 – 2100 nm	Low
BD-S300/330/360-STN	306.0 ± 6.0 μm	0.220 ± 0.020	367.5 ± 7.5 μm	650 ± 33 μm	800 – 2100 nm	Low
BD-S400/440/660-STN	408.0 ± 8.0 μm	0.220 ± 0.020	672.5 ± 12.5 μm	1100 ± 55 μm	800 – 2100 nm	Low
BD-S600/660/720-STN	612.00 ± 12.00 μm	0.220 ± 0.020	735 ± 15 μm	1100 ± 55 μm	700 – 2200 nm	Low
BD-S1000/1100-STN	1020.0 ± 20.0 μm	0.220 ± 0.020	N/A	1400 ± 70 μm	800 – 2100 nm	Low

Ordering Information:

Connector End A-Connector End B, Connector Type
Fiber Type: Wavelength Range, Core/Cladding Diameter, Core NA, Coating Diameter, Coating Material, Attenuation Plot, etc.
Furcation Tubing Type
Cable Length

Multimode 4.8mm LSZH Black Stainless Steel armored Patch Cable with FC PC connector 0
